Superior DRT3545 45" Direct Vent Gas Fireplace
The Superior DRT3545 pairs a generous traditional flame view with the convenience of a modern direct vent gas fireplace. Its ceramic glass, detailed log set, interior lighting, and adjustable blower make it a warm focal point for a living room or gathering space.
Choose the natural-gas DRT3545DEN-E or propane DRT3545DEP-E model to match your fuel supply. The fireplace offers a top or rear vent configuration, electronic ignition with battery backup, and a full-function remote. To complete the unit, select one compatible decorative facade and one interior liner kit; both are ordered separately.
Why Choose the DRT3545?
Wide Flame View
A 39-1/4" wide by 24-1/2" high viewing area frames the included high-definition ceramic fiber log set. Choose a liner and facade to complete the look.
Comfort You Can Control
The included full-function remote adjusts flame height, the six-speed blower, interior lighting, and thermostat settings. Switch between intermittent and continuous pilot modes.
Flexible Installation
The 17" deep appliance can be configured for top or rear venting with the approved 4-1/2" x 7-1/2" direct-vent system. Your installer should confirm the vent route and clearances.
Complete the Fireplace Before Ordering
One decorative facade and one interior liner kit are required and sold separately. The ceramic fiber logs, blower, remote, and interior lighting are standard equipment. Confirm fuel type, required selections, and venting components with us before checkout.
Specifications
[[SPECIFICATIONS]]
45" Model Details
| Specification | Natural Gas | Propane |
|---|---|---|
| Model | DRT3545DEN-E | DRT3545DEP-E |
| Manufacturer catalog number | F5009 | F5010 |
| Input range | 35,000-24,000 BTU/hr | 30,000-23,000 BTU/hr |
| P4 / EnerGuide efficiency | 62.9% | 63.0% |
| Glass viewing area | 39-1/4" W x 24-1/2" H | |
| Appliance size | 45-1/4" W x 37-1/8" H x 17" D | |
| Framing opening | 45-7/8" W x 41-1/4" H x 18-1/2" D; consult the installation manual for the selected vent configuration | |
| Venting | Top or rear; approved 4-1/2" x 7-1/2" Secure Vent rigid or Secure Flex components | |
Dimensions and framing requirements vary with venting and finishing details. The specification sheet and installation manual govern the final installation.
Included
Standard Equipment
Flame and Firebox
45" direct vent fireplace, ceramic glass, and a high-definition ceramic fiber log set. Electronic ignition supports intermittent or continuous pilot operation and includes battery backup.
Heat and Lighting
Factory-installed variable-speed heat-circulating blower and interior lighting, each with six settings.
Full-Function Control
Included remote control for pilot mode, thermostat, flame height, blower, and lighting. The protective screen barrier is supplied with the required facade selection.
Not included with the base fireplace: the required decorative facade, required interior liner kit, and installation venting components. Confirm the complete package when ordering.
Options & Finishes
Required Selections
Choose one facade and one liner kit for this 45" model. These components are ordered separately from the fireplace.
Vista Facade

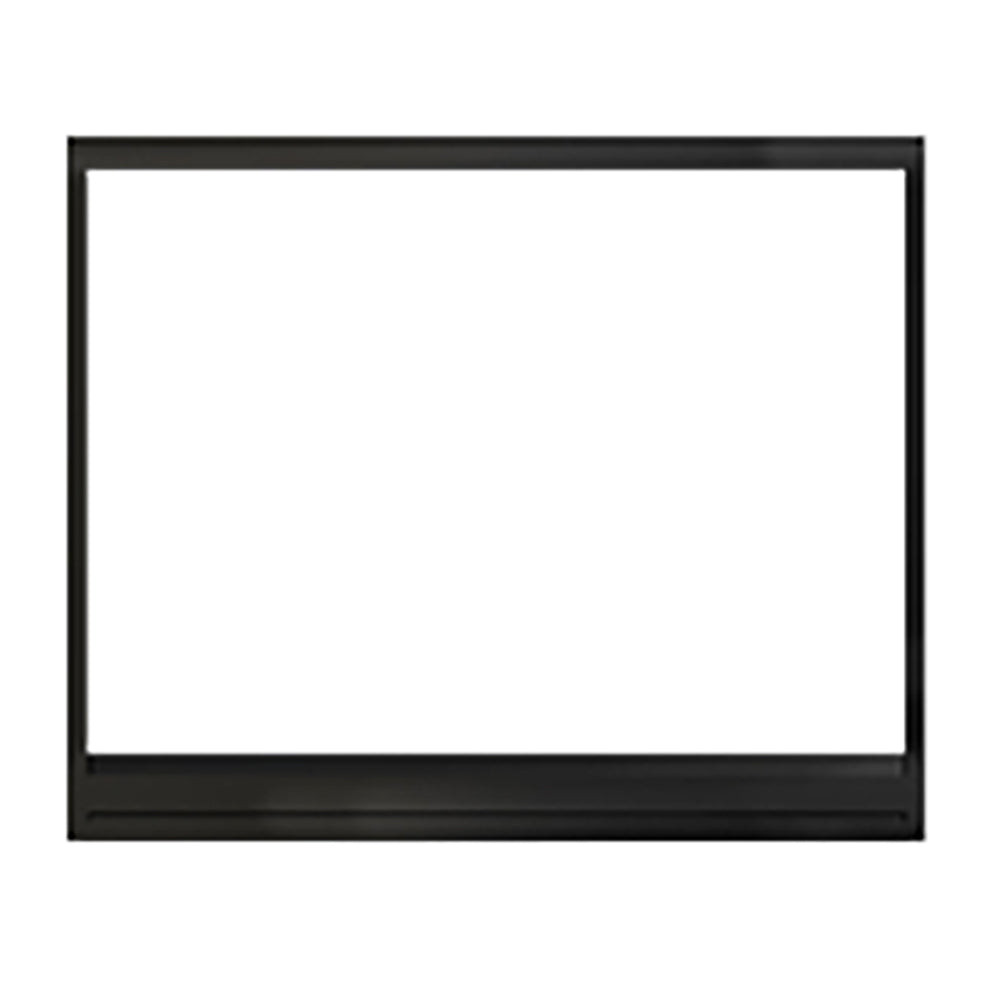

Vista Frame in Black (FVPBK45T). An inside-fit frame for a clean, understated finish. Select this facade if you also want a compatible stainless decorative surround.
Reflection Facades
Choose Black (FRBK45T) or Warm Chestnut (FRWC45T). These decorative overlap-fit facades add a more pronounced frame around the fire.
Craftsman Facades
Choose Black (FCBK45T) or Warm Chestnut (FCWC45T) for a traditional, substantial surround. Each required facade includes a protective screen barrier.
Ceramic Fiber Liners
Choose one stacked ceramic liner: Blackstone (FLK45BLK), Greystone (FLK45GREY), or Blended Brown (FLK45BB).
Reflective Porcelain Liner
Choose Black Reflective Porcelain (45LKDV2PB) for a sleek interior that reflects the flames. This is an alternative to the ceramic liner kits.
Fuel Selection
Order the natural-gas model DRT3545DEN-E or the propane model DRT3545DEP-E. Your installer must confirm the correct fuel and gas connection.
Optional Accessories
Stainless Surrounds
Three-sided (SURR45-SS3S-B) and four-sided (SURR45-SS4S-B) decorative surrounds are available. A Vista facade is required for these surrounds.
Ember Accents
Platinum Embers (PGE) and Glowing Embers (FGE) are listed as optional accessories for a personalized firebed appearance.
Additional Finishing
A decorative facade stone stop kit (DFSSK45) and manufacturer-approved fuel conversion kits are available for applicable installations. Conversion must be handled by a qualified professional.
Downloads
Documents & Resources
Use the manufacturer's documents to confirm dimensions, venting, clearances, operation, and accessory compatibility before installation.
FAQ
Superior DRT3545 FAQs
What is required to complete the fireplace?
Choose one compatible decorative facade and one interior liner kit. Both are ordered separately. The installation also requires an approved direct-vent system and appropriate gas and electrical connections.
Is the log set included?
Yes. The high-definition ceramic fiber log set is standard equipment. The interior liner and decorative facade are separate required selections.
What is the difference between the natural-gas and propane models?
The DRT3545DEN-E natural-gas model is rated from 35,000 to 24,000 BTU/hr. The DRT3545DEP-E propane model is rated from 30,000 to 23,000 BTU/hr. Select the version that matches the installation's fuel supply.
Does the DRT3545 need a chimney?
It needs an approved direct-vent system that terminates outdoors, not a conventional wood-burning chimney. The fireplace can be configured for top or rear venting; follow the manufacturer's venting tables and local code.
Are the blower and remote included?
Yes. A six-speed blower and full-function remote are standard. The remote controls flame, lighting, blower, pilot mode, and thermostat functions.
Will it work during a power outage?
The electronic ignition includes battery backup for continued fireplace operation when household power is interrupted. Electrically powered features such as the blower and lighting may not operate on battery backup; consult the operation manual.
Can I place a TV above the fireplace?
TV placement depends on actual wall temperatures, mantel and finish materials, and the TV manufacturer's limits. Have your installer review the fireplace clearances and the TV instructions before planning a media wall.
Who should install the fireplace?
Installation and service should be performed by a qualified gas-appliance professional following the Superior installation manual and applicable local codes.
Warranty
Superior Limited Warranty
Superior lists the DRT3500 Series with a 20-year limited warranty. Coverage varies by component and is subject to the manufacturer's terms, exclusions, installation requirements, and claim process.
Keep your proof of purchase and installation records. Review the current warranty information supplied with the fireplace or installation and operation manual before making a claim.
