Napoleon Vector 50 Linear Gas Fireplace
The Napoleon Vector™ 50 (LV50N-2) is a single-sided, built-in direct vent gas fireplace with a wide 52 3/4-inch viewing area, a Divinity™ flame pattern, an illuminated ember bed, and flexible designer-media options.
Fire, Light, and Connected Control
Divinity™ Flame Pattern
The tube-style burner produces varied flame peaks across the linear viewing area for a layered contemporary presentation.
Layered Lighting
Multi-colored LED ember-bed lighting and the NIGHT LIGHT™ system let the fireplace add a gentle glow even when the burner is not in use.
eFIRE Control
Use the included remote control or Napoleon eFIRE mobile app support to manage compatible fireplace functions from the room.
Build a Look for Your Room
Pair the included MIRRO-FLAME™ porcelain reflective radiant panels with a compatible media selection, surround, or finishing trim. Accessory compatibility and added cost depend on the final configuration.
Media
Logs, Rocks, and Glass
Napoleon lists high-definition log sets, mineral rocks, Woodland media, wrought iron globes, glass beads, and glass embers among the available design choices.
Finishing
Surround and Trim Options
Coordinate the fireplace with compatible black or stainless finishing choices. Confirm current part numbers and availability before ordering.
Heat Planning
Optional Heat Management
Napoleon lists LHAD, Dynamic Heat Control, Dynamic Heat Control Plus, and Ducted Heat Management options for project-specific heat planning.
Preview the Configuration
Use Napoleon's Fireplace Design Studio to explore available looks, then confirm compatibility and required components with FireWerks.
Plan the Complete Installation
Natural Gas Base Model
LV50N-2 is the factory natural-gas model. Propane operation requires a separate manufacturer-approved conversion kit and does not make the base SKU a factory-propane fireplace.
Configuration Items Are Separate
Do not assume that decorative media, venting, heat-management components, surrounds, trims, finishing materials, or installation labor are included with the base unit.
Professional Installation
Have the appliance, venting, framing, clearances, fuel conversion, and finishing plan confirmed by the authorized dealer and qualified installer for the actual project.
Included
Included with the Fireplace
The LV50N-2 base fireplace includes the core appliance, safety, control, lighting, and reflective-interior components listed below. Decorative media is selected separately.
Premium Safety Barrier
A black premium safety barrier protects the front of the heat-radiating ceramic glass.
Reflective Interior Panels
MIRRO-FLAME™ porcelain reflective radiant panels are included with the base fireplace.
eFIRE Controller and Remote
The natural-gas eFIRE controller and handheld remote control are included.
Battery Backup
The controls include a battery backup system for operation during a power interruption.
Integrated Lighting
Multi-colored LED ember-bed lighting, accent lighting, and the NIGHT LIGHT™ system are part of the standard fireplace.
Core Fireplace Components
The base unit includes electronic ignition, a tube-style burner with flame and heat adjustment, a stainless steel flex connector, and a firestop/vent shield.
Required to Complete the Fireplace
Media must be selected to complete the fireplace. Choose one compatible media direction from the available log, decorative-media, or glass-media options; a log set is not specifically required.
High-Definition Log Options
Compatible high-definition choices include oak, driftwood, and birch log sets.
Decorative Media Kits
Compatible alternatives include Beach Fire, Birch Log, Woodland, and Mineral Rock media kits.

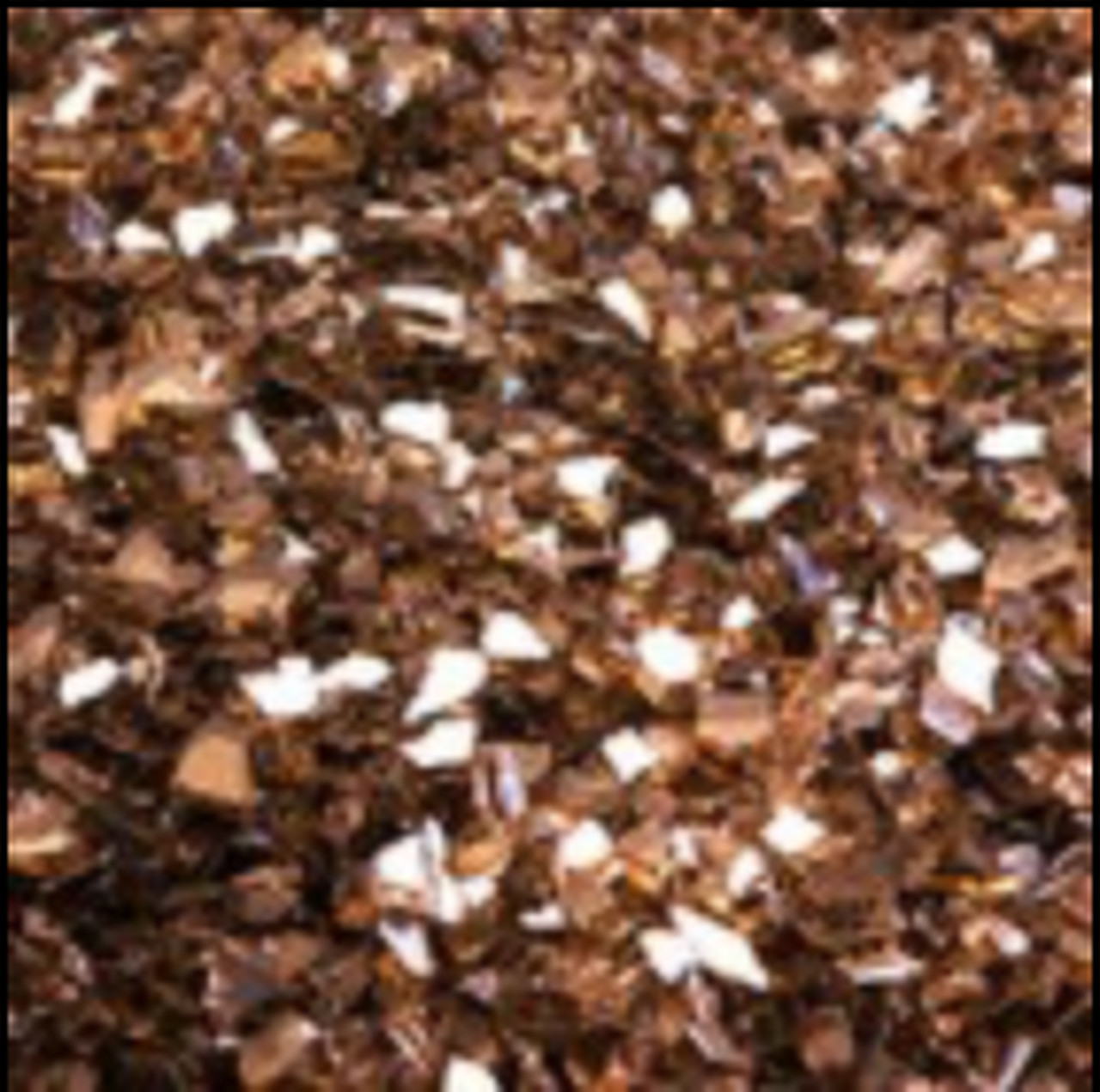

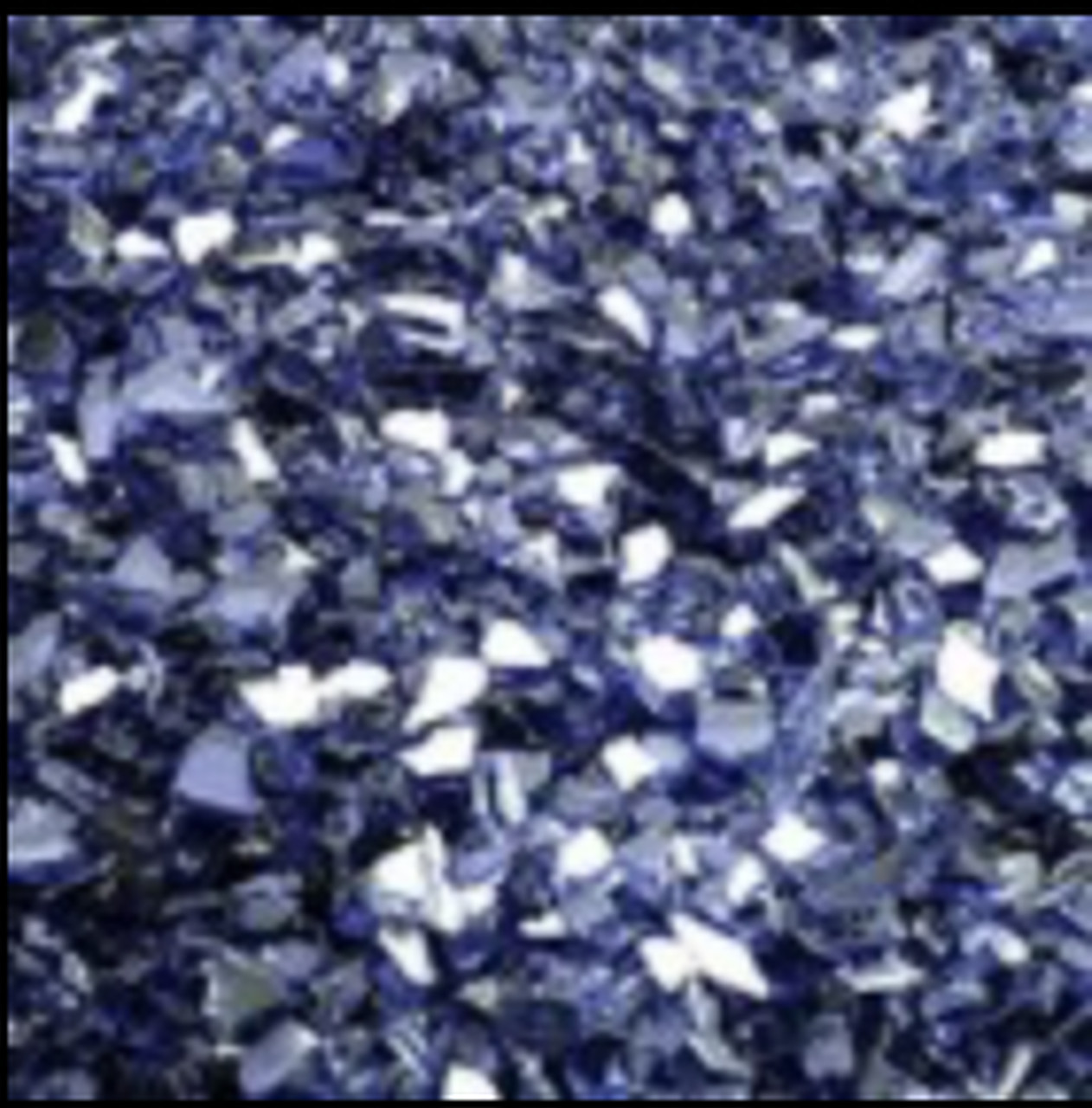

Glass Media Options
Glass beads and glass embers are offered in multiple colors. Confirm the compatible type and required quantity for the LV50 configuration; Napoleon recommends two glass kits for the 50-inch model.
Venting, termination components, finishing materials, and installation labor are also selected separately for the project and are not included with the base fireplace.
Optional Accessories & Upgrades
Wrought Iron Globes
Add the compatible Wrought Iron Globe Kit as a decorative enhancement to an approved media configuration.
Fronts and Safety Barriers
Optional finishing choices include classic black and brushed stainless steel fronts, plus a brushed stainless steel premium safety barrier.

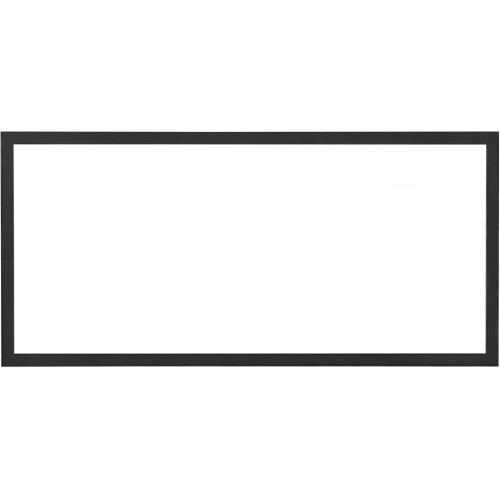

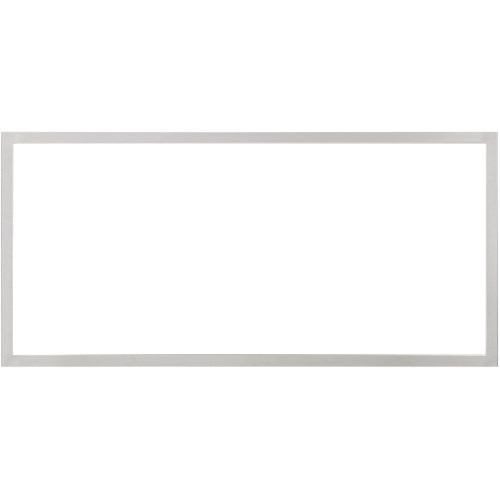

Trims and Finishing Kits
Choose from compatible black or stainless finishing trim, an end panel kit for the single-sided model, and a non-combustible board kit.
Propane Conversion
A manufacturer-approved natural-gas-to-propane conversion kit is optional and separate. LV50N-2 remains the factory natural-gas model.
Wall-Mount Control
An optional wall-mount control is available for use with the compatible eFIRE controller.
Heat Management
Project-specific options include Dynamic Heat Control, Dynamic Heat Control Plus components, Dynamic Linear Trim, and the LHAD hot-air distribution kit. Some systems cannot be combined.
Specifications
[[SPECIFICATIONS]]
Product Model Details
| Specification | Details |
|---|---|
| Manufacturer | Napoleon |
| Manufacturer model | Vector™ 50 |
| SKU | LV50N-2 |
| Installation and view type | Built-in, single-sided, direct vent gas fireplace |
| Factory fuel type | Natural gas |
| Alternate fuel configuration | Propane operation requires a separate manufacturer-approved conversion kit; conversion kit is not included unless selected |
| Maximum heat input | 36,000 BTU |
| Ignition | Electronic ignition |
| Glass type | Ceramic |
| Viewing area | 52 3/4 in. wide x 18 5/8 in. high |
| Overall appliance dimensions | 65 5/16 in. W x 41 3/16 in. H x 19 7/8 in. D |
| Minimum framing dimensions | 65 13/16 in. W x 73 in. H x 20 1/8 in. D; required enclosure height may increase with the venting configuration |
| Heat-management options | LHAD, Dynamic Heat Control (DHC), Dynamic Heat Control Plus (DHC+), and Ducted Heat Management (DHM) |
| Standard controls | Remote control, eFIRE controller support, and battery backup control system |
| Manufacturer warranty | President's Limited Lifetime Warranty; current written terms and exclusions apply |
Downloads
Documents & Resources
Download current manufacturer documents for the Napoleon Vector 50. Have the final installation reviewed by a qualified professional.
Accessory Manuals
These manufacturer-listed instructions apply to compatible accessories and configurations for the LV50N-2. Accessory availability, compatibility, and inclusion depend on the selected fireplace configuration.
FAQ
Napoleon Vector 50 FAQs
What fuel is the LV50N-2 configured for?
LV50N-2 is the natural-gas model. Propane use requires a separate manufacturer-approved conversion kit and qualified conversion; the kit is not assumed to be included.
How large is the viewing area?
The manufacturer lists a 52 3/4-inch-wide by 18 5/8-inch-high viewing area.
What controls are included?
Napoleon lists the eFIRE controller and remote control as included, along with a battery backup control system.
Is decorative media included?
Decorative media should be treated as a configuration selection. Confirm the selected media, required quantities, compatibility, and added cost with FireWerks before ordering.
Can I add a surround or finishing trim?
Compatible surrounds and trims are available, but current part numbers and compatibility should be confirmed for LV50N-2 and the chosen media and heat-management configuration.
What heat-management options are listed for the Vector 50?
Napoleon lists LHAD, DHC, DHC+, and DHM options. The correct system and required components depend on the installation plan.
What else may be required for installation?
Venting, conversion components, finishing materials, heat-management components, and labor may be separate. Have the complete system and local code requirements confirmed before purchase and installation.
Warranty
Napoleon Vector 50 Warranty Information
Napoleon identifies the Vector 50 as covered by its President's Limited Lifetime Warranty.
Review Current Written Terms
Coverage, exclusions, claim requirements, and term lengths are governed by Napoleon's current written warranty for the appliance. Keep the sales record and product identification, and confirm warranty questions with FireWerks or Napoleon before service.
