MA805-E90ABCDG is an L-shaped outdoor kitchen from the Mont Alpi Elite Series, built around the six-burner, 87,000 BTU grill module with rotisserie kit and fitted cover included. Alongside the grill: a 90° corner module that turns the run into an L and adds a square of sintered stone countertop at the turn; a storage cabinet with a stainless door for tools, covers and serveware; a 3-drawer cabinet that keeps utensils, rubs and towels within reach; a pull-out trash cabinet with a 15-gallon bin, kept out of sight; a 2.6 cu ft glass-door fridge cabinet for cold drinks and ingredients; and a sink cabinet with a gooseneck faucet and a wooden sink cover. With cold storage and running water in the same run, it works as a complete outdoor kitchen: prep, cook, chill and clean up without going back indoors.
The total run is 239 inches including the corner module, 27 inches deep and 36 inches to the countertop (47 inches with the grill hood closed). The 90° corner lets the cook face guests across the counter, and the modules can be arranged in any order on either leg.
Each module arrives 100% pre-assembled with its sintered stone countertop fitted. Simply connect and cook. Every module is also sold on its own, and this layout costs the same as its modules bought separately, so you can start here and keep adding. When you need help, real people at Mont Alpi answer the phone, and every module is backed by the Mont Alpi limited lifetime warranty.
Key features
- Six-burner grill: 87,000 BTU from six 304 stainless steel burners, with 8mm cooking grills
- Rotisserie kit with electric motor, ceramic infrared rear burner and fitted grill cover included
- Propane tank pull-out in the grill module
- Two halogen surface lights and LED back-lit knobs (blue, then red when lit) for cooking after dark
- 90° corner module turns the run into an L and carries the countertop around the turn
- Storage cabinet with 304 stainless door for tools, covers and serveware
- 3-drawer cabinet with large 304 stainless roller ball drawers
- Pull-out trash cabinet with a 15-gallon bin, kept out of sight
- 6 cu ft glass-door fridge cabinet with LED light, key lock and wire shelves
- Sink cabinet with gooseneck faucet and wooden sink cover
- 239 in total run including the corner; modules can be arranged in any order
- 100% pre-assembled modules with exterior-rated sintered stone countertops fitted
- Wood-grain HDPE cabinets and 304 stainless steel: no staining, no sealing, wipe-clean
- Sintered stone countertops resist UV fading, heat, moisture and freeze-thaw
- Every module stands on gliding rubber castor wheels and leveling feet
- Mont Alpi limited lifetime warranty, and real people at Mont Alpi who answer the phone

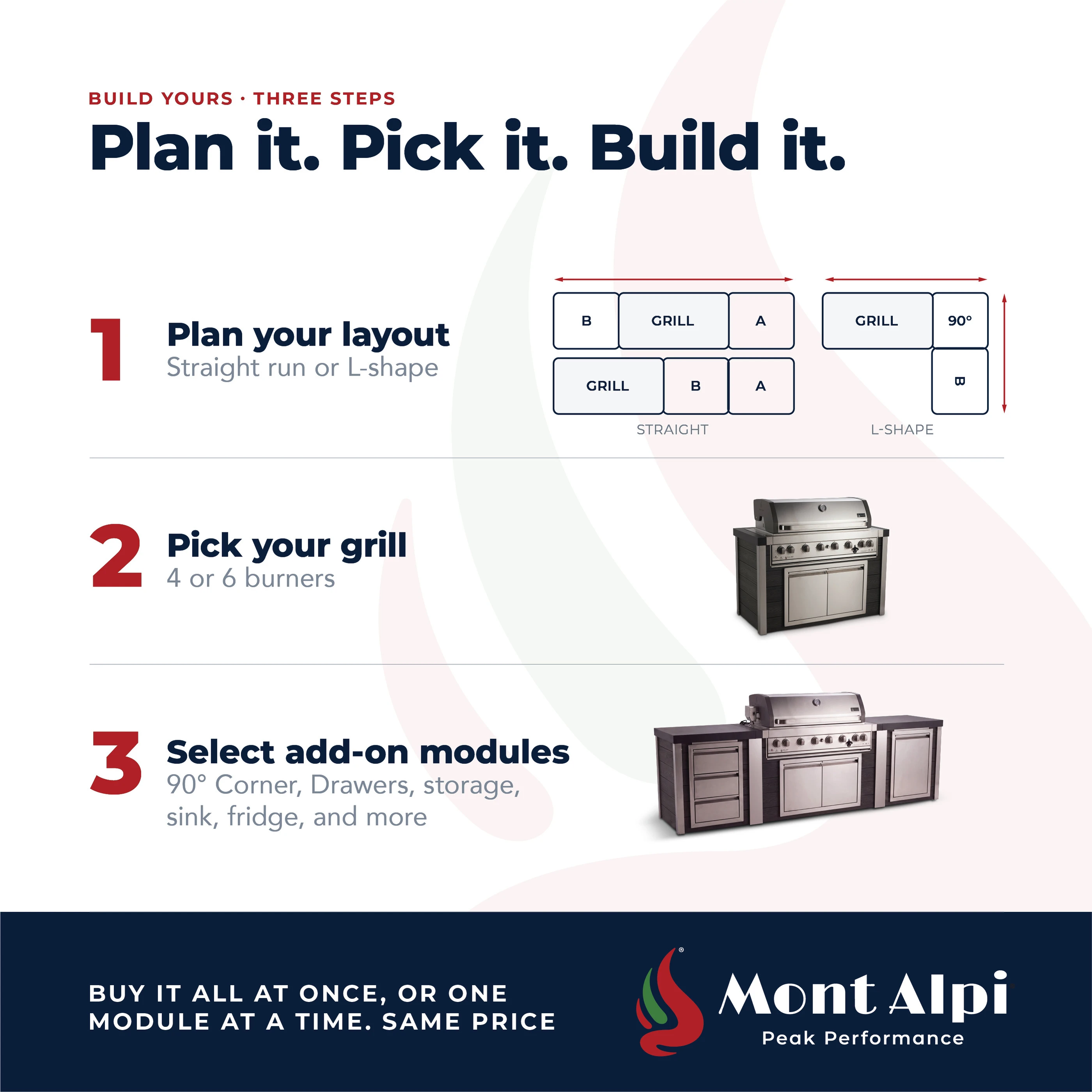

Plan, pick, build
Follow the Elite Series layout-planning sequence when selecting modules and space requirements.
Included grill extras
Included

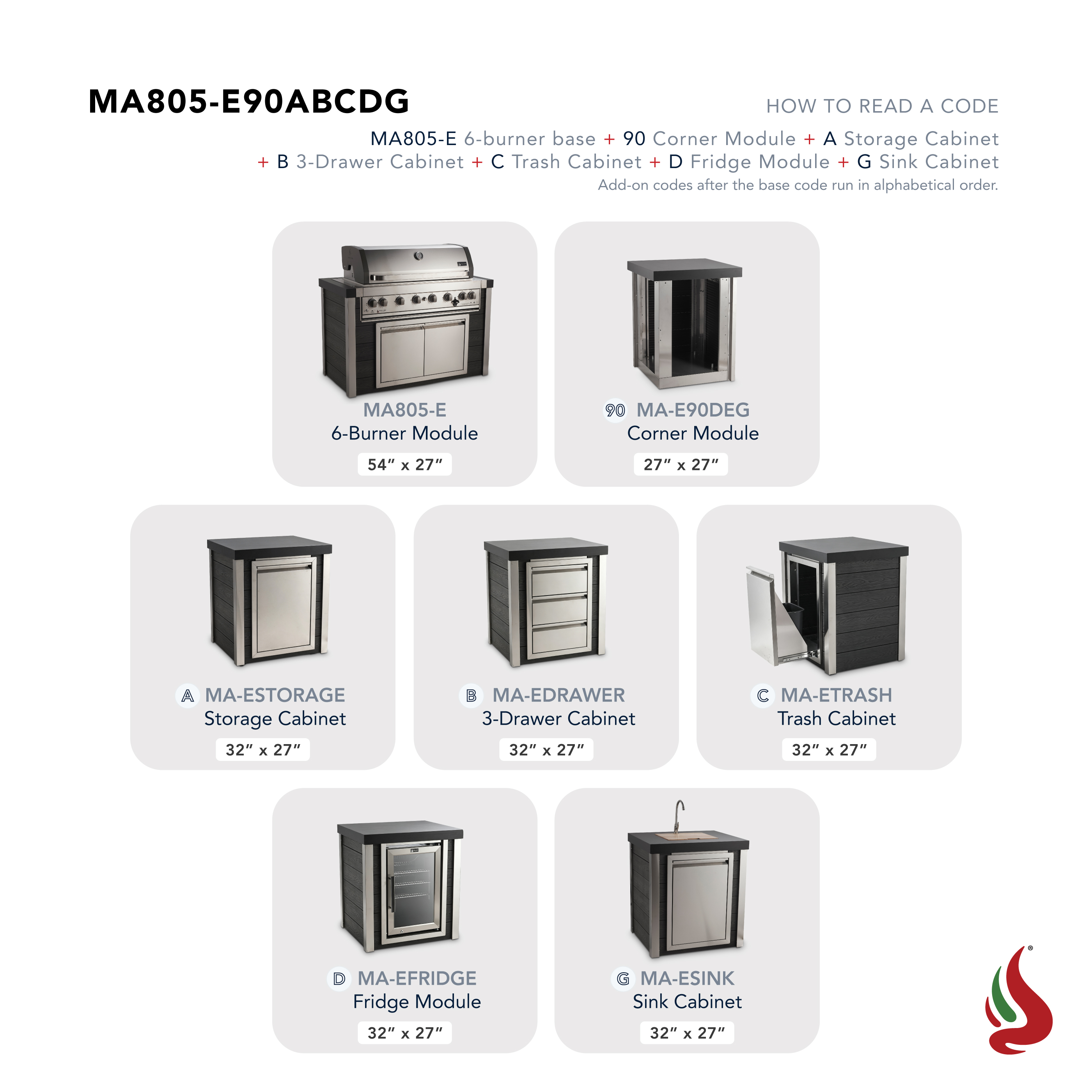

What's in the MA800-E90ABCDG package
Seven matching Elite Series modules make up this specific configuration. These are included components of MA800-E90ABCDG—not separately required cabinet purchases.

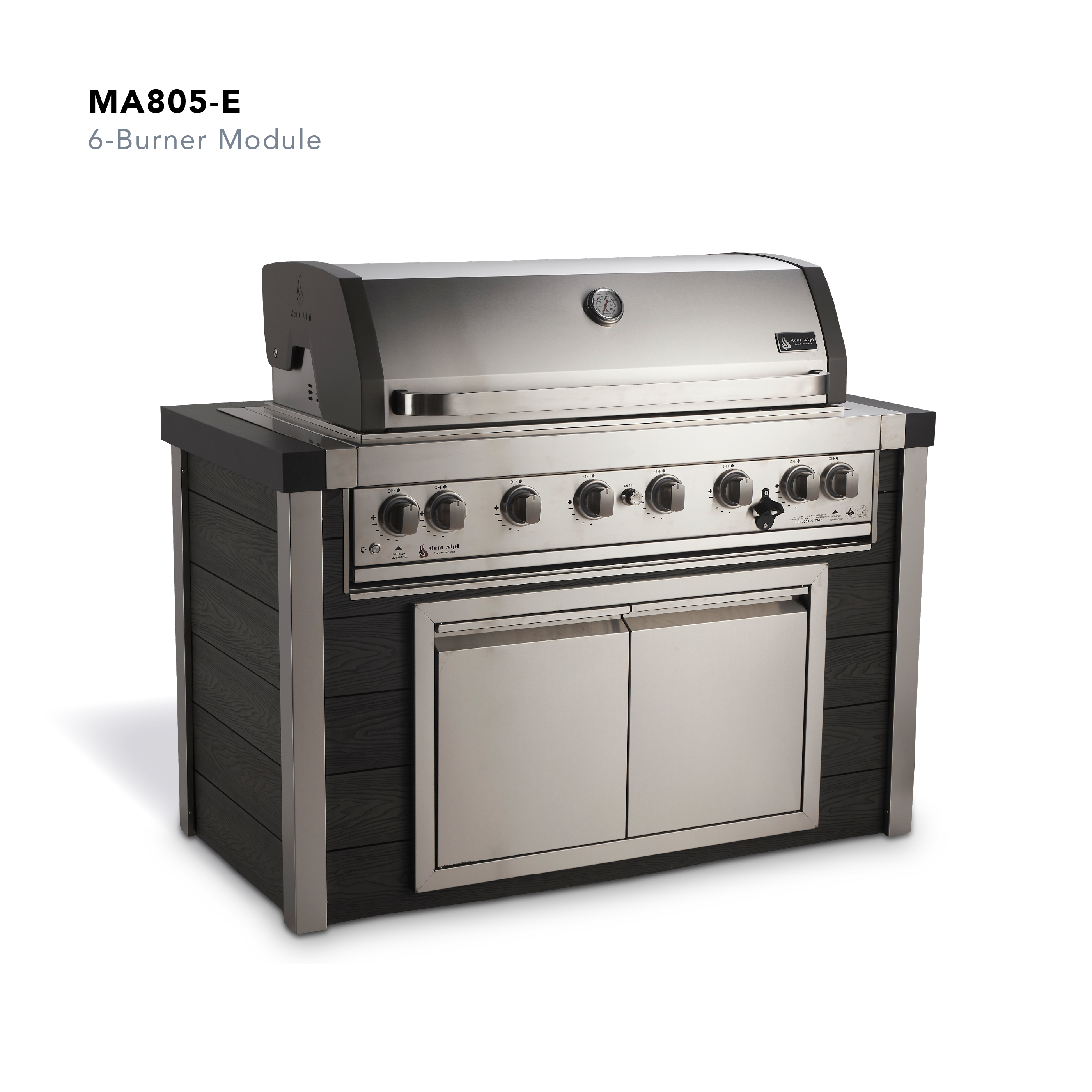

MA800-E — 6-burner grill base
54" W × 27" D × 36" counter height (47" to closed hood). Contains the 32" cooking head, four main burners, infrared rear burner, under-grill double-door storage and propane tank pull-out.
MA-E90DEG — 90° corner
27" W × 27" D × 36" H. Connects the kitchen runs at a right angle and continues the sintered stone countertop through the corner.

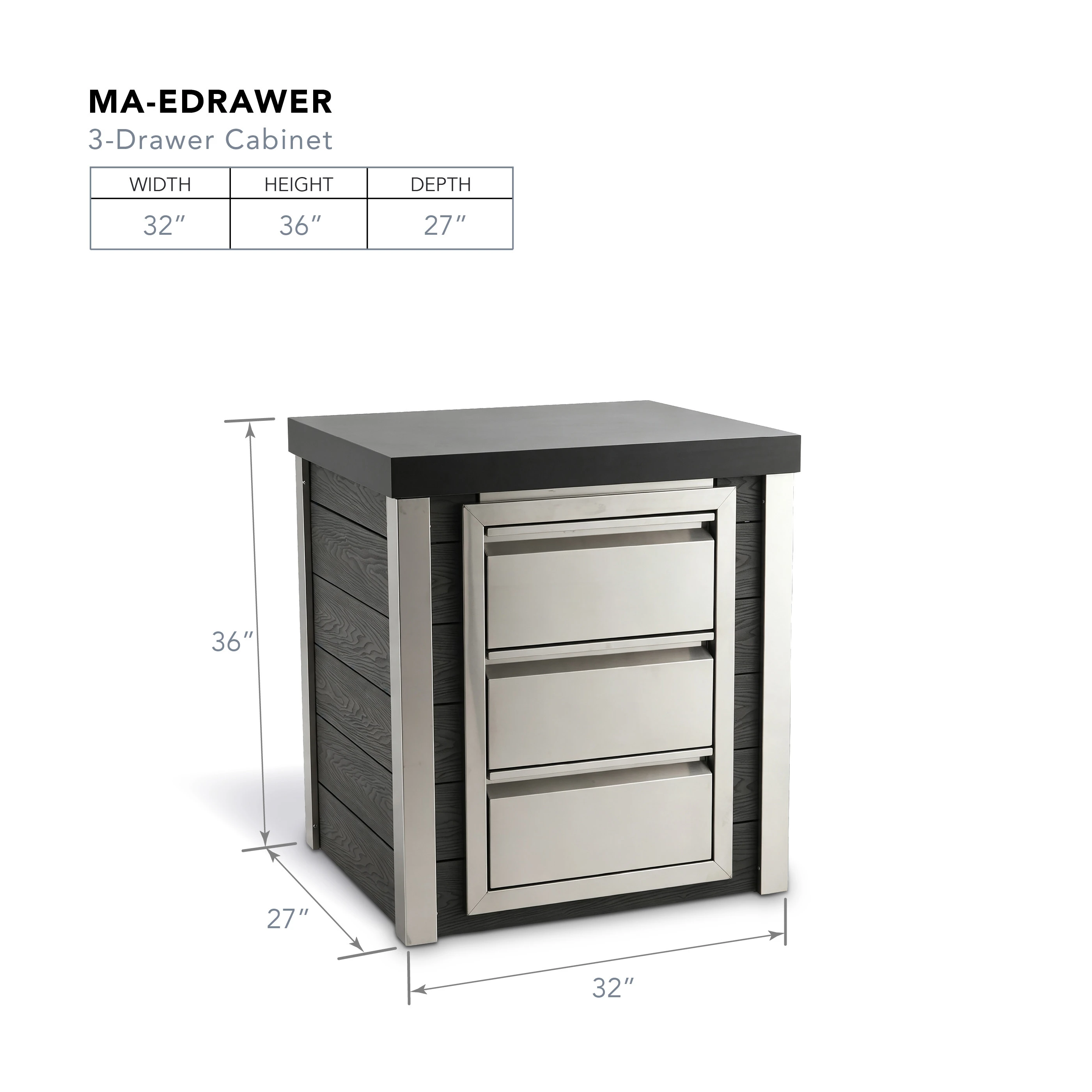

1 × MA-EDRAWER — drawer cabinet
32" W × 27" D × 36" H. Three large 304 stainless steel drawers glide on roller-ball slides for tools, linens and outdoor cooking supplies.

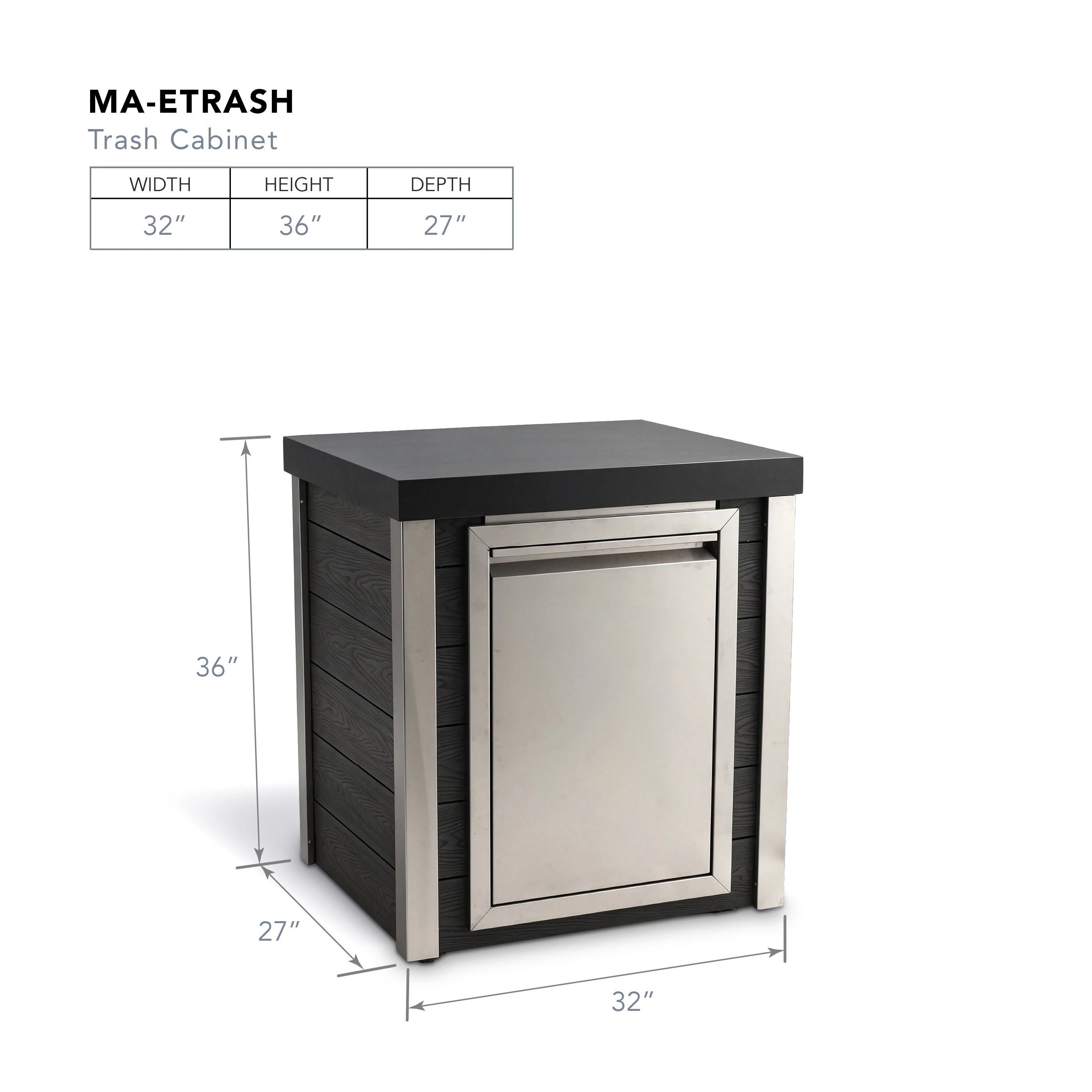

1 × MA-ETRASH — trash cabinet
32" W × 27" D × 36" H. A pull-out stainless drawer conceals the included 15-gallon waste bin for easy cleanup close to the cooking area.
Included with the grill module
Rotisserie & rear burner
Electric-motor rotisserie kit plus ceramic infrared rear burner.
Propane connection
Propane hose, regulator and a pull-out tank tray.
Cooking convenience
Fitted weather cover, warming rack, bottle opener, internal cooking lights and front grease tray.
Optional, not part of this package
The manufacturer offers a natural gas conversion kit and compatible cooking accessories such as a griddle and charcoal tray separately. Do not assume these extras are included with MA400-E90BC. The package ships configured for propane.
The supplied Elite Series accessories and warranty overview are illustrated by Mont Alpi.
Specifications
Specifications
|
Specification |
Detail |
|
Configuration code |
MA805-E90ABCDG |
|
Series |
Mont Alpi Elite Series |
|
Layout |
L-shaped (with 90° corner module) |
|
Number of modules |
7 |
|
Overall length |
239 in total run, including the corner module |
|
Depth |
27 in |
|
Counter height |
36 in |
|
Height with grill hood closed |
47 in |
|
Fridge capacity |
2.6 cu ft, LED interior light |
|
Trash bin |
15-gallon bin included |
|
Sink faucet height |
48.6 in to the top of the faucet, about 13 in above the countertop |
|
Grill |
6 burners, 87,000 BTU, 44-inch grill head |
|
Burners and grates |
304 stainless steel burners, 8mm cooking grills, ceramic infrared rear burner |
|
Included with grill |
Rotisserie kit with electric motor, fitted grill cover, propane tank pull-out |
|
Fuel |
Propane (hose and regulator included); natural gas with Mont Alpi conversion kit |
|
Materials |
Wood-grain HDPE cabinets; if it's steel, it's 304 stainless (grill, refrigeration and fittings); exterior-rated sintered stone countertops included |
|
Base |
Gliding rubber castor wheels and leveling feet on every module |
|
Assembly |
Modules arrive pre-assembled; connect on site |
|
Warranty |
Mont Alpi limited lifetime warranty |
Good to know
- The fridge needs a power supply. Your retailer can advise on installation.
- Sink hookup: connect it simply with a garden hose, or have it plumbed in permanently by a licensed plumber.
- Optional extras: double-sided griddle, charcoal tray, gas conversion kit, grill covers.
DOWNLOADS
FAQ
What arrives assembled?
Every module arrives 100% pre-assembled with its sintered stone countertop fitted. Position the modules, connect them and cook: from delivery to cooking in under an hour.
Propane or natural gas?
The grill ships propane-ready with hose and regulator, and converts to natural gas with the Mont Alpi conversion kit.
Are the cabinets enclosed?
Yes. The cabinets are fully enclosed, which helps keep rodents and insects out.
What are the countertops made of?
Exterior-rated sintered stone, which resists UV fading, heat, moisture and freeze-thaw.
Can the modules be moved?
Yes. Every module stands on gliding rubber castor wheels and leveling feet, so you can roll each one into place and level it on site.
Can I add modules later?
Yes. Every module is sold on its own and joins any other in any order, at the same price as buying it in a layout.
How does the sink connect?
Connect it simply with a garden hose, or have it plumbed in permanently by a licensed plumber.
What is the warranty?
The Mont Alpi limited lifetime warranty, the same as the rest of the Mont Alpi range.
Who do I call for help?
Real people at Mont Alpi answer the phone. No bots.
