Majestic Meridian Platinum 42" Direct Vent Gas Fireplace
The Meridian Platinum 42 brings a wide, traditional flame view together with the comfort features that distinguish Platinum from the standard Meridian: higher heat output, illuminated embers and accent lighting, an included variable-speed fan, and an included RC400 touchscreen remote.
Choose the natural-gas MER42PN or propane MER42PL model. Both use Majestic's IntelliFire Touch ignition system and a top or rear direct-vent configuration. To complete the fireplace, order one compatible decorative front and one interior liner kit separately.
Platinum Features
Generous Flame View
Ceramic glass opens the view to a 41-1/4" wide by 26-11/16" high viewing area, six ceramic fiber logs, and an LED-illuminated ember bed.
Comfort Built In
A GFK-160 variable-speed fan helps move warmth into the room. Natural-gas input ranges from 23,000 to 45,000 BTU/hr; propane input ranges from 23,000 to 44,000 BTU/hr.
Touchscreen Control
The included RC400 remote manages flame height, fan speed, accent lights, thermostat functions, and more. IntelliFire Touch ignition includes battery backup for fireplace operation during a power outage.
Two Selections Are Required
Choose one approved 42" decorative front and one compatible interior liner kit. Both are sold separately from the fireplace. The front supplies the required protective barrier; do not operate the fireplace without it.
Specifications
[[SPECIFICATIONS]]
Meridian Platinum 42" Model Details
| Specification | Natural Gas | Propane |
|---|---|---|
| Model | MER42PN | MER42PL |
| Input range | 23,000-45,000 BTU/hr | 23,000-44,000 BTU/hr |
| EnerGuide efficiency | 57.4% | 58.4% |
| Viewing area | 41-1/4" W x 26-11/16" H | |
| Framing width | 49" | |
| Framing height | 42-1/8" | |
| Framing depth | 22" | |
| Venting | Top or rear direct vent; follow the installation manual for the approved vent system, route, and clearances | |
These are planning dimensions. The installation manual and the requirements for your selected front, liner, venting, and heat-management components govern the final installation.
Included
Standard Platinum Equipment
Fireplace and Logs
Meridian Platinum 42" fireplace, ceramic glass, six ceramic fiber logs, and IntelliFire Touch ignition with battery backup.
Light and Heat
LED-illuminated embers, LED accent lighting, and the GFK-160 variable-speed fan are included. Accent lighting is not used with the black glass liner option.
RC400 Remote
The RC400 touchscreen remote is included for control of the compatible flame, fan, lighting, and thermostat functions.
Ordered separately: one required decorative front, one required liner kit, and the approved venting and installation components for your project. A Wi-Fi module is optional, not included with the base fireplace.
Options & Finishes
Required Decorative Front: Choose One
Each listed 42" front completes the fireplace with a protective barrier. Choose the style and finish that suit your room.
Essence
Inside-fit front in Black (ESSENCE42BK). Essence ClearVue adds ClearVue mesh in Black (ESSENCECV42BK).

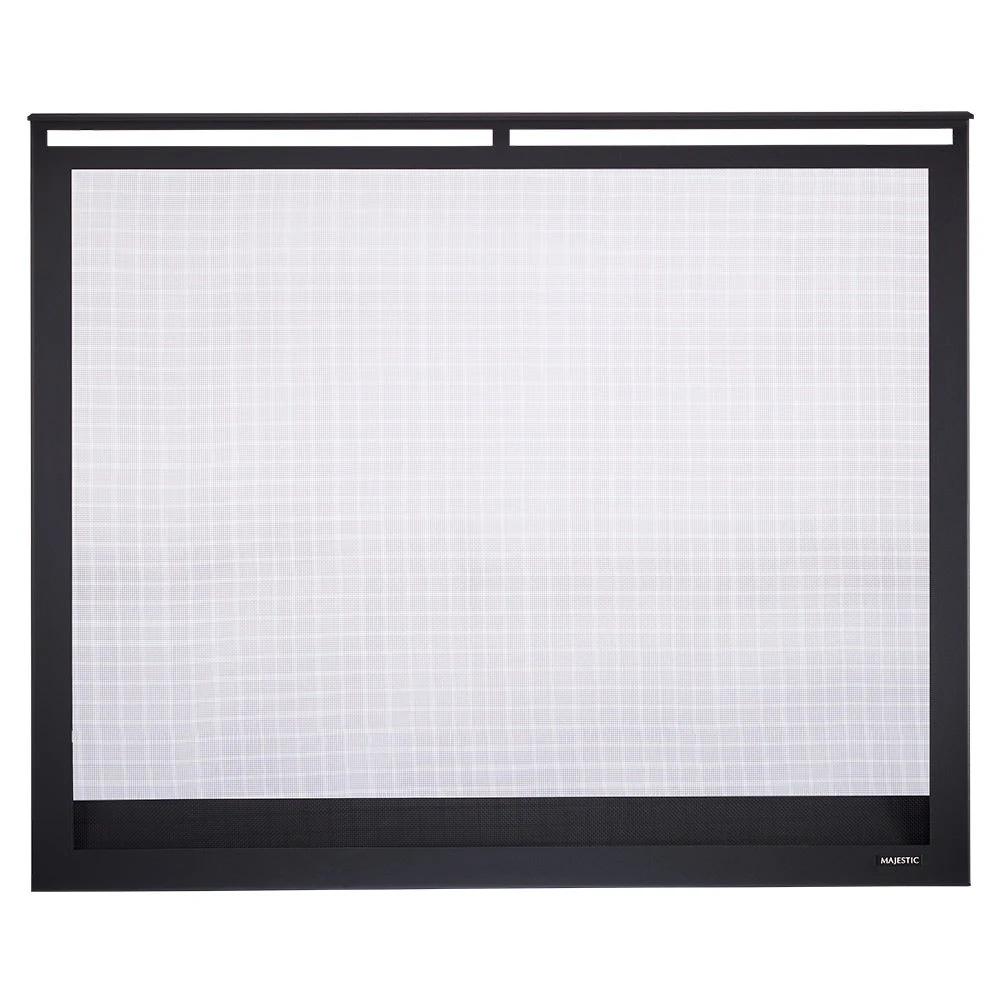

Ventura
Overlap-fit front in Black (VENTURA42BK) or New Bronze (VENTURA42NB).
Manor
Arched overlap-fit front with ClearVue mesh in Black (MANOR42BK) or New Bronze (MANOR42NB).

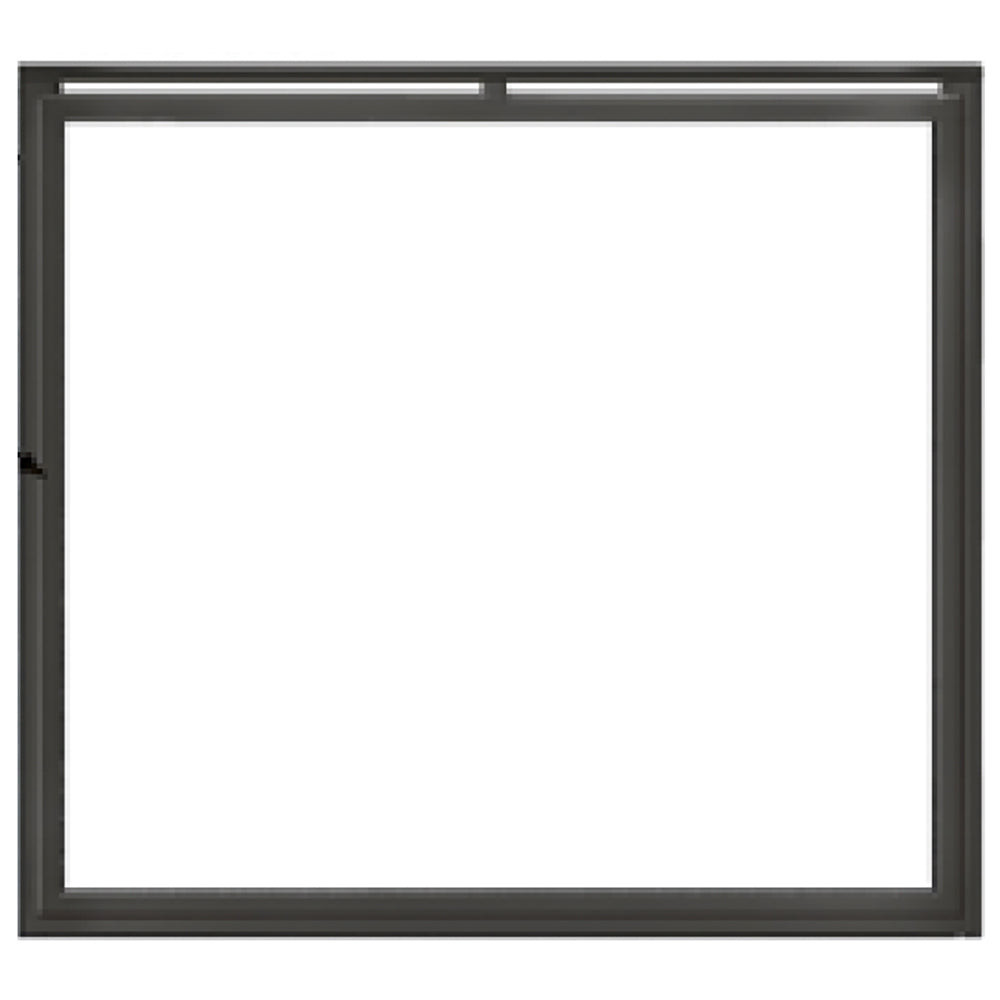

Ensemble
Overlap front with ClearVue mesh and Gun Metal trim (ENSEMBLE42GM) or New Bronze trim (ENSEMBLE42NB).
Required Interior Liner: Choose One

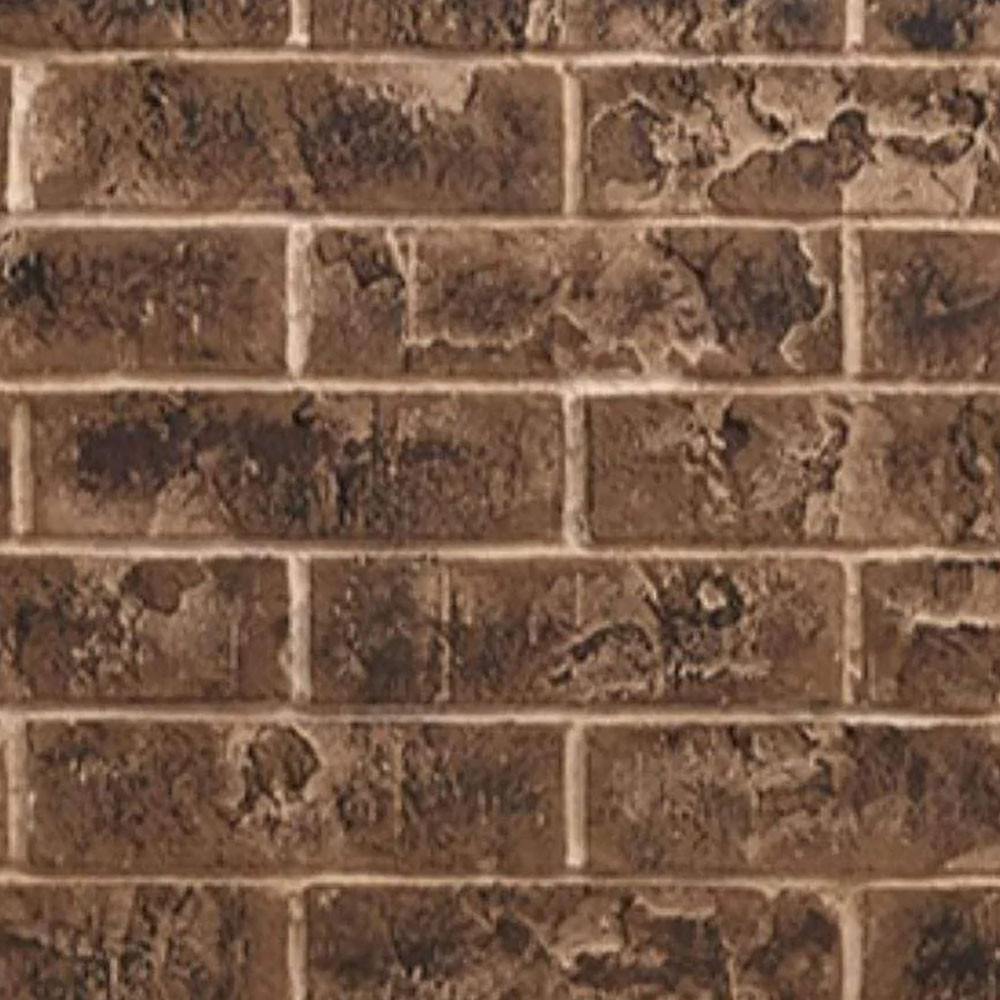

Traditional Tavern Brown
Brick interior panels in a traditional pattern (BRICK42MPLTB).

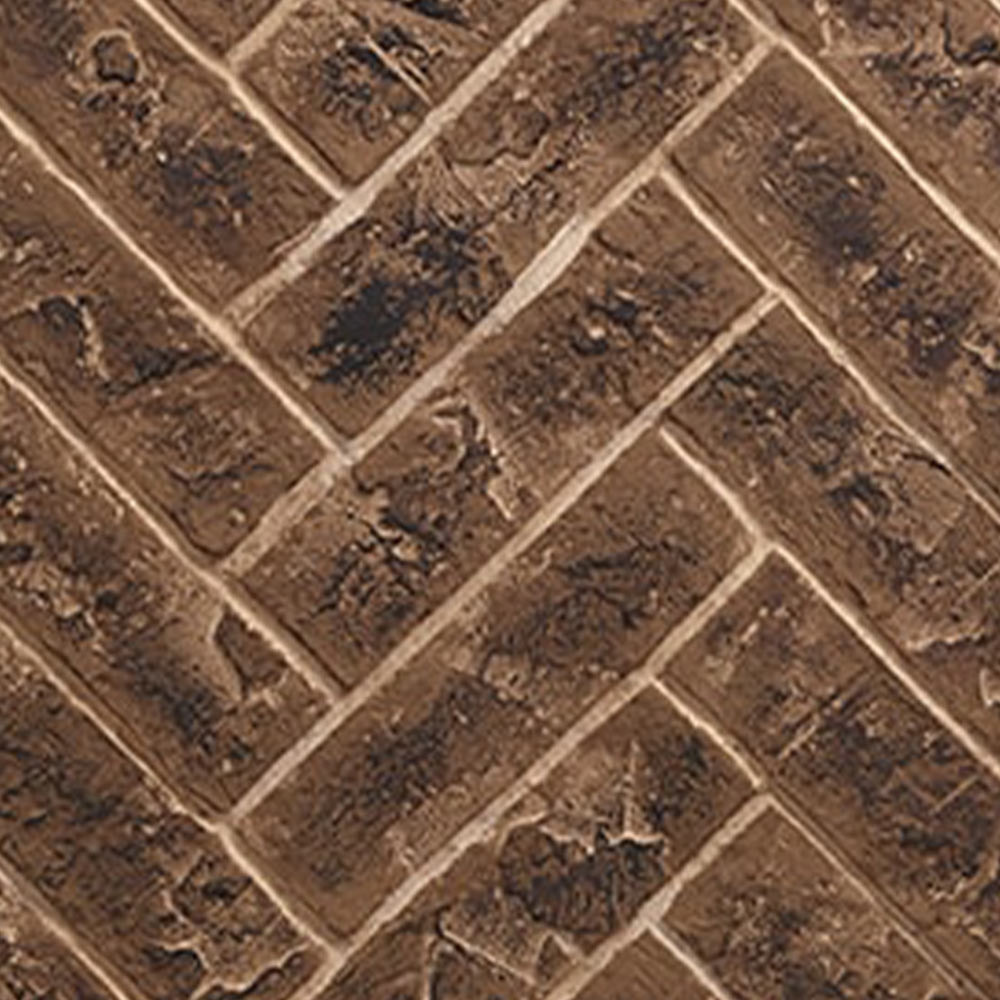

Herringbone Tavern Brown
Brick interior panels with a herringbone pattern (BRICK42MPLTBH).
Castle Stone
Stone-style interior panels (BRICK42MPLCS).
Black Glass
Two-sided reflective black and matte glass liner kit (GL-42MX). The Platinum LED accent lighting is not used with this liner.
Optional Accessories
Heat Management
Passive Heat front or side trim kits, Heat Out, and Heat-Zone systems offer different ways to redirect warmth. These require their own compatible components and installation plans.
App Control
Add the IntelliFire Wi-Fi module (IFT-WFM) for compatible smartphone and smart-speaker control. The RC400 remote itself is already included.
Wall Switch
An optional battery-backup wall switch kit (BATTERY-WSK) offers a separate wall-mounted control point.
The accessory sheet also lists fan kits for other configurations. A GFK-160 fan is already included with the Meridian Platinum 42, so do not add a second fan unless your installer identifies a specific need.
Downloads
Documents & Resources
Review the official Majestic documents for current dimensions, safe clearances, venting, controls, and accessory compatibility.
FAQ
Majestic Meridian Platinum 42" FAQs
How is Meridian Platinum different from the standard Meridian?
The Platinum 42 has higher maximum input and adds an included RC400 touchscreen remote, variable-speed fan, ceramic glass, LED ember lighting, and LED accent lighting.
What must I select to complete the fireplace?
Choose one compatible 42" decorative front and one interior liner kit. Both are sold separately. Approved venting and installation materials are also needed for the project.
Are the logs, fan, and remote included?
Yes. Six ceramic fiber logs, the GFK-160 variable-speed fan, and the RC400 touchscreen remote are standard with the Meridian Platinum 42.
What fuel models are available?
MER42PN is the natural-gas model, rated from 23,000 to 45,000 BTU/hr. MER42PL is the propane model, rated from 23,000 to 44,000 BTU/hr. Select the model that matches the installation fuel.
Do the lights work with every liner?
The LED ember bed is a Platinum feature. The LED accent lighting is not used with the black glass liner, so consider a brick or stone liner if accent lighting is important to you.
Can I control the fireplace from my phone?
The RC400 remote is included. Smartphone and compatible smart-speaker control require the optional IntelliFire Wi-Fi module and app.
Can a TV go above the fireplace?
Optional heat-management systems can lower temperatures in the wall area above the fireplace. TV placement still depends on the selected system, installation details, and the TV manufacturer's temperature limits; have your installer confirm the plan.
Who should install the Meridian Platinum 42?
A qualified gas-appliance professional should install and service the fireplace using the Majestic installation manual and applicable local codes.
Warranty
Majestic Limited Warranty
Majestic advertises a limited lifetime warranty for key gas-fireplace components, including the firebox and heat exchanger. Coverage periods, exclusions, and claim requirements vary by component and by the warranty supplied with the fireplace.
Keep your purchase and installation records. The warranty shipped with your specific unit governs; Majestic's online warranty page provides the latest published terms for reference.
